226B SERIES CONSTRUCTION MACHINERY

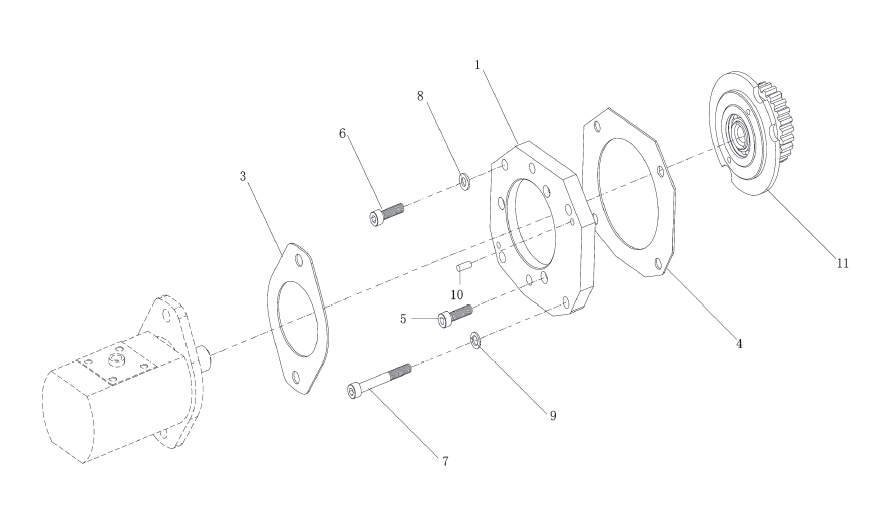

CRANKCASE ASSEMBLY(4)

2015-11-18 00:02:36

NO. Part No. Chinese Name Part Name
1 13020204 液压泵支撑板 SUPPORT BOARD
3 12159835 垫片 GASKET
4 12189678 垫片 GASKET
5 1151488 内六角圆柱头螺钉 CHEESE HEAD SCREW
1110584 内六角圆柱头螺钉 CHEESE HEAD SCREW
6 1110578 内六角圆柱头螺钉 CHEESE HEAD SCREW
7 13021442 内六角圆柱头螺钉 CHEESE HEAD SCREW
8 1118645 密封垫圈 SEALING RING
9 1177981 弹簧垫圈 SPRING LOCK WASHER
10 1105130 圆柱销 PARALLEL PIN
11 13020870 液压泵齿轮组件 HYDRAULIC PUMP GEAR ASSEMBLY
